Method For Disassembling Plasma ARC Welding Torch

 Plasma ARC Welding Torch includes a torch body assembly including a generally cylindrical torch body and an insulator disposed in the torch body; an electrode assembly mounted in the torch body assembly, the electrode of the electrode assembly Projecting from a front end of the insulator; a nozzle that engages with the torch body assembly and defines a central bore therethrough for directing a flow of plasma gas from the central bore through the discharge port, the spray outlet being defined at a forward end of the nozzle, the nozzle including An externally threaded portion and a forwardly facing surface spaced rearwardly from the externally threaded portion; Plasma ARC Welding Torch Manufacturer tell you a hollow, generally cylindrical, nozzle-retaining cup assembly including a rear portion defining a releasable connection with the torch body assembly and defining an opening a front portion, the externally threaded portion of the nozzle projects through the opening, the front portion further defining a rearward surface that surrounds the opening and opposite the forward surface of the nozzle; and an internal thread retainer that is externally threaded from the nozzle Partially engaging and engaging the front portion of the cup assembly holding the nozzle to force the forward surface of the nozzle toward the rearward surface of the cup assembly holding the nozzle, thereby The cup-shaped assembly holding the nozzle and the nozzle are held together as an integral unit, the unit being removable from the torch body assembly by disengaging the releasable connection between the cup assembly holding the nozzle and the torch body assembly, In order to be able to access the Electrode Holder assembly.

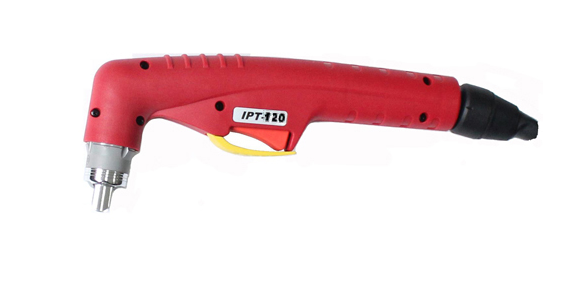

Plasma ARC Welding Torch
