•Introduction:

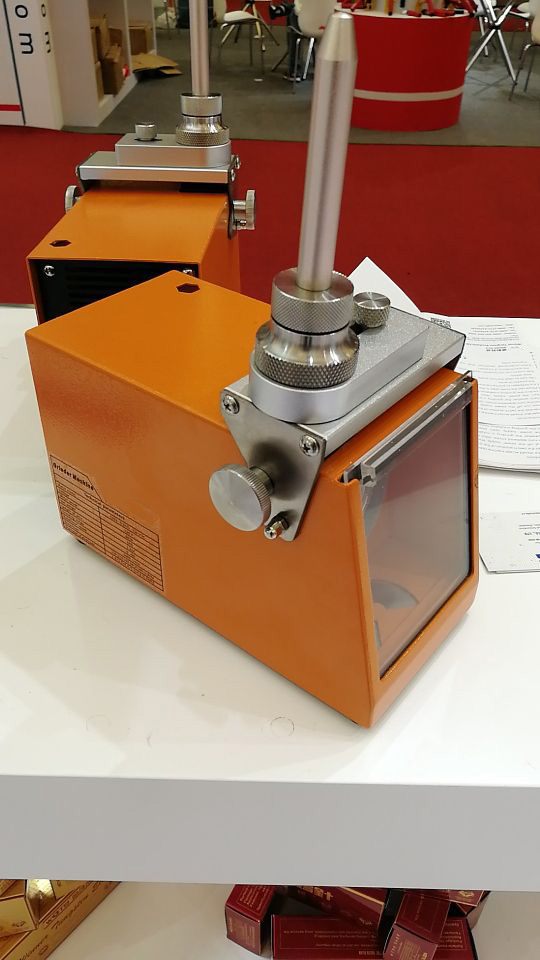

Tungsten Grinder
•Advantage:
with CE Certificate
Portable and smart flexible
Suitable any grinding angles
Suitable for any electrode dia.
Meet the ergonomics design
Unique fixture design, holding steady
Work life is long
Low cost, high output, energy saving and consumption reducing, lower noise
No need for manual positioning several times to improve grinding efficiency
•Technical parameters
The dia. of Tungsten Electrode: 1.6-5.0mm
Mini. length: 40mm
Adjusting range of Grinding angle: 0°-60°
The power supply:220V
Power: 60W
The dia. of grind segment:90mm
Minimum length:40mm
Rotational speed: 5000r/min
Working speed: 2pcs/minute
Net weight: 4kg
Size: 230x160x180mm
Why should I buy Tungsten Grinder? It saves time for customer, the concentricity is superior.
•How to use
We have video to show it. Simple to operate.

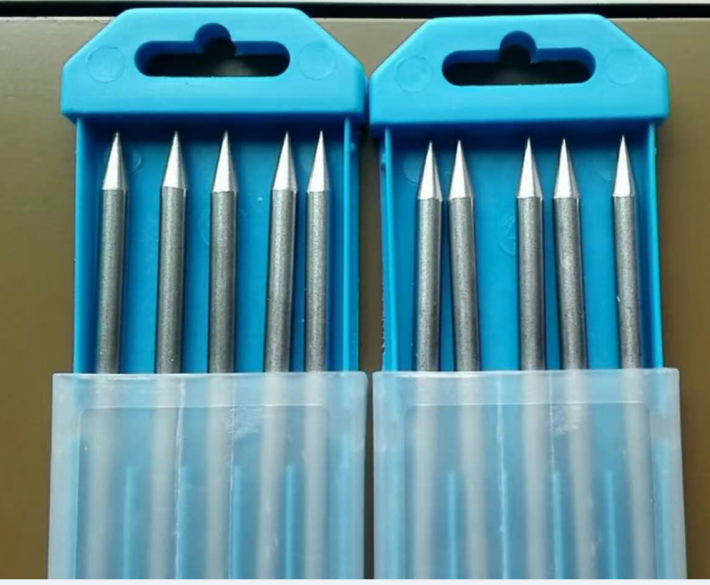

The grinded effect as following:
•Cautions for use
To control the tungsten electrodes down toward speed. Except Grinding, other operation will be under switch-off state, it is to protect the motor.

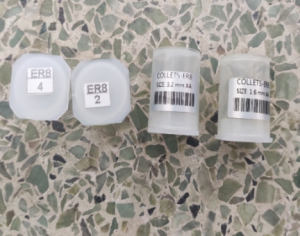

•Components to supply
.jpg) |  | .jpg) |

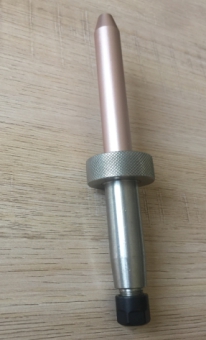

| Grinding Wheel | Drill Chuck | Holder |
•Main market: South East Asia, Europe
•We will supply as customer local plug and power
.
