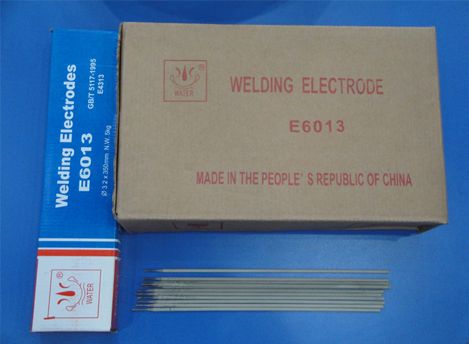

HBE402 is a kind of carbon steel electrode with titania type coating. AC/DC,All-position welding. It has excellent welding performance, excellent operating performance,easy reignition,stable arc and beautiful appearance of weld.
AWS E6013 electrode is a general purpose electrode with good depth of fusion and fast deposition rates. Other benefits include low spatter and easy slag removal. This excellent electrode is perfect for general welding applications around the store or garage.
For welding low-carbon steel structures, especially suitable for welding on thin plates and cosmetic welding which requires the weld beads to be beautiful and glossy.
Standard & Typical Chemical Composition of Deposited Metal (%)
Chemical Composition | C | Mn | Si | S | P |
Specification | ≤0.12 | 0.3-0.6 | ≤0.35 | ≤0.035 | ≤0.040 |
Actual result | 0.070 | 0.4 | 0.25 | 0.019 | 0.025 |
Standard & Typical Mechanical Properties of Deposited Metal
Test Item | Yield Point ReL (MPa) | Tensile strength Rm (MPa) | Elongation A4 (%) | Akv Value (J) | |
Specification | ReH≥330 | ≥420 | ≥17 | normal temp. | 0℃ |
Typical Value | ≥340 | 460-540 | 18-26 | 50-80 | ≥47 |
Size and Current(AC or DC)
Dia.(mm) | 2.5 | 3.2 | 4.0 | 5.0 |
Length(mm) | 300/350 | 350 | 400/450 | 400/450 |
Current(A) | 50-90 | 90-130 | 130-210 | 170-230 |
