Introduction: It is MIG,TIG wire for welding of extra-low-carbon stainless steel , which welding seam metal is extra-low-carbon type. It will not create carbides in intercrystalline as lower carbon, and having excellent intercrystalline corrosion resistance.
Usage: For welding similar stainless steel structures, alloys and dissimilar steels. Also it could be used in nuclear reactor, transition layer welding of the inner wall in the pressure vessel and components welding in the tower.
Standard &Typical Chemical Composition of Deposited Metal (%)
|
Element
|
C
|
Mn
|
Si
|
P
|
S
|
Cr
|
Ni
|
Mo
|
Cu
|
|
Specification
|
≤0.030
|
1.00-2.50
|
0.30-0.65
|
≤0.030
|
≤0.030
|
23.00-25.00
|
12.00-14.00
|
≤0.75
|
≤0.75
|
|
Actual Result
|
0.021
|
1.98
|
0.51
|
0.012
|
0.008
|
23.94
|
12.98
|
0.38
|
0.17
|
X-radioghy standard: Ⅰ.

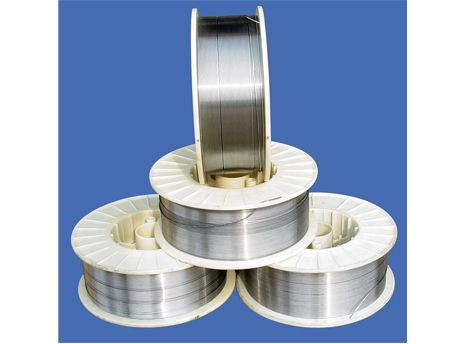

Packing:
|
Diameter |
MIG(Plastic spool)
|
(Length and weight)
|
|
D300
|
1000mm
|
|
|
15.0kg
|
5kg/plastic drum
|
|
|
0.8
|
√
|
|
|
1.0
|
√
|
|
|
1.2
|
√
|
|
|
1.6
|
√
|
√
|
|
2.0
|
|
√
|
|
2.5
|
|
√
|
|
3.2
|
|
√
|
