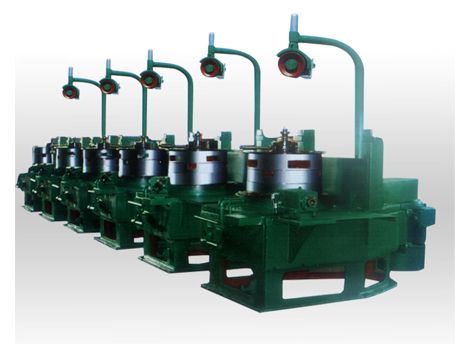

The machine adopts Y-series motor belt-driving, the speed of the machine and the motor configuration could be predesigned by the requirement of the users.
1-6set wine drawing group is capable of drawing 2-6mm diameter black metal, wire material, suitable for wire drawing, standard components and welding make industry.
The main technical specification and parameter are as follows:
|
No.
|
Names
|
Datas
|
|
1
|
Max Diameter of drawing
|
φ6.5mm
|
|
2
|
Min Diameter of drawing
|
φ2mm
|
|
3
|
Diameter of reel
|
φ550mm
|
|
4
|
Motor power
|
18.5kw
|
|
5
|
Regulating range of motor
|
1200~120r.p.m
|
|
6
|
Net weight per set
|
2t
|
|
7
|
Overall dimension Per set
|
1300×1640×2170mm
|
